Email: tyceramic001@163.comTel: 86-13771343185Language:

case

Home      case


  • Dry Pressing Process of Industrial Ceramics
  • Dry Pressing Process of Industrial Ceramics
Dry Pressing Process of Industrial CeramicsDry Pressing Process of Industrial Ceramics

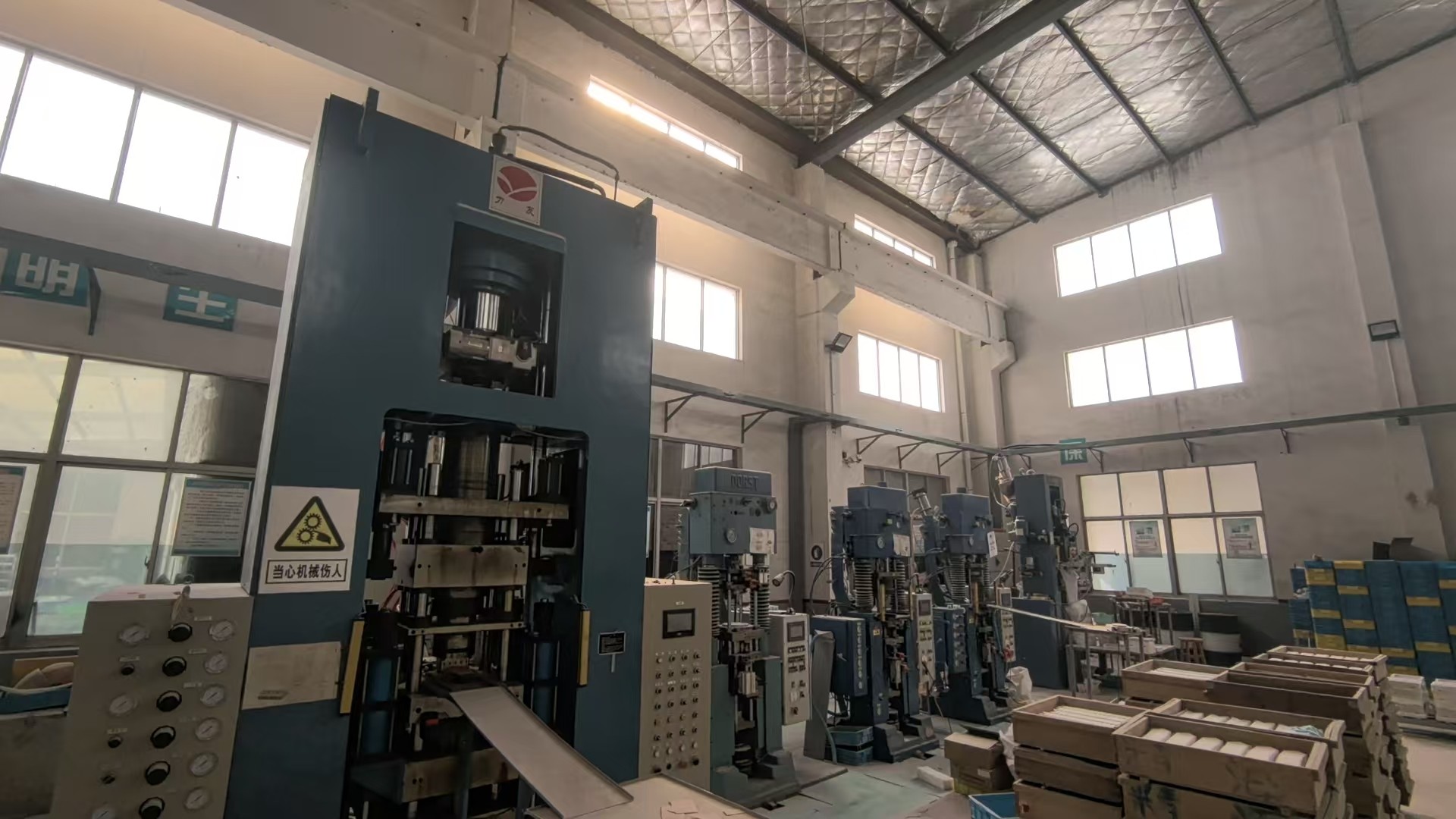

Here’s a professional English overview of **Ceramic Dry Pressing** (also called **Dry Pressing** or **Uniaxial Pressing**), including its process, advantages, limitations, and applications:


---


### **Ceramic Dry Pressing – Technical Overview**


#### **1. Definition**

**Dry pressing** is a powder compaction method where **granulated ceramic powder** is pressed in a rigid die under high **uniaxial pressure** (typically 10–100 MPa) to form a "green body" (unsintered compact). It is widely used for mass-producing simple-shaped ceramic parts.


---


### **2. Process Steps**

1. **Powder Preparation**

   - Ceramic powder (e.g., Al₂O₃, ZrO₂, SiC) is mixed with **1–5% organic binders** (e.g., PVA, PEG) to improve flowability and green strength.

   - Granulation is done to ensure uniform particle packing.


2. **Die Filling**

   - Powder is fed into a **steel or carbide die cavity** (automated for high-volume production).


3. **Compaction**

   - A punch applies uniaxial pressure (single-action or double-action pressing).

   - Typical pressure range: **10–100 MPa** (higher for advanced ceramics).


4. **Ejection & Green Body**

   - The pressed "green compact" is ejected and inspected for cracks/density variations.


5. **Sintering**

   - The green body is fired at high temperatures (1200–1700°C) to achieve densification.



### **3. Advantages**

✔ **High Production Speed** – Suitable for mass production (e.g., thousands of parts/day).

✔ **Good Dimensional Control** – Tolerances of **±0.1–0.5%** achievable.

✔ **Low Binder Content** – Reduces debinding time compared to injection molding.

✔ **Cost-Effective** – Simple tooling and low energy consumption.


---


### **4. Limitations**

❌ **Simple Shapes Only** – Difficult for complex geometries (undercuts, thin walls).

❌ **Density Gradients** – Non-uniform pressure can cause layered density variations.

❌ **Tooling Wear** – Abrasive powders (e.g., SiC) degrade dies over time.


---


### **5. Applications**

- **Electronics**: Substrates, insulators, ceramic capacitors.

- **Industrial**: Wear-resistant tiles, cutting tools, grinding media.

- **Consumer Goods**: Sanitaryware, decorative tiles.


---


### **6. Key Parameters**

| Parameter          | Typical Range               |

|--------------------|-----------------------------|

| Pressure           | 10–100 MPa                  |

| Binder Content     | 1–5 wt%                     |

| Green Density      | 50–60% of theoretical       |

| Sintering Shrinkage| 15–20% linear               |


---


### **7. Comparison with Other Methods**

| Method          | Shape Complexity | Production Rate | Density Uniformity |

|-----------------|------------------|-----------------|--------------------|

| **Dry Pressing** | Low–Medium       | Very High       | Moderate           |

| **Isostatic Pressing** | High       | Low–Medium      | Excellent          |

| **Injection Molding** | Very High | Medium          | Good               |


---


### **8. Industry Trends**

- **Nanopowder Dry Pressing**: Enhanced sintering at lower temperatures.

- **Automated Die Systems**: Robotics for higher precision and throughput.

- **Binder-Free Pressing**: Reducing debinding steps for niche applications.




CATEGORIES

    LATEST NEWS

    CONTACT US

    Contact: Kevin Zhou

    Phone: 86-13771343185

    Tel: 86-13771343185

    Email: tyceramic001@163.com

    Add: Chuanbu Industrial park,yixing city,Jiangsu province

    Leave a message

    Facebook

    LinkedIn

    Youtube

    instagram

    86-13771343185

    15250828645

    whatsapp

    tyceramic001@163.com

    504889978

    Top
