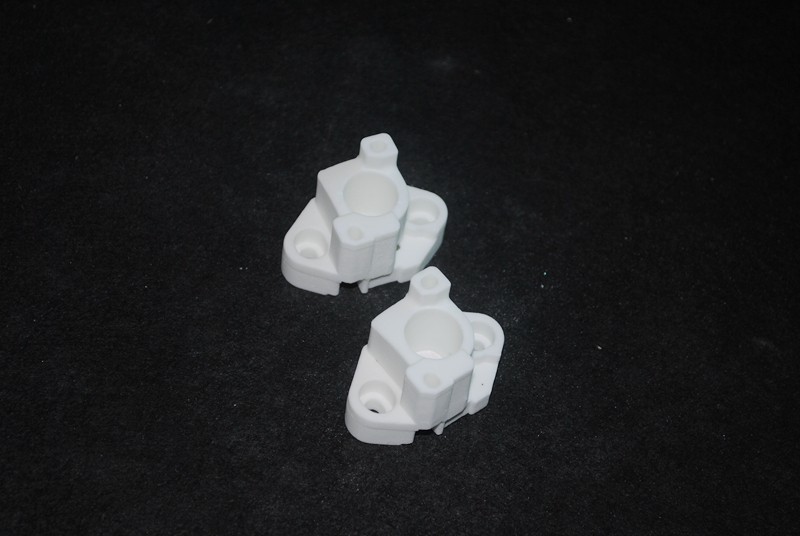

high performance terminal block ceramic terminal block with mounting hole

Description of Electric Ceramic Connector

Smooth ceramic (high quality ceramic)is made of hot press injection technic, size is very accurately. We can produce and install according to customers demand size , joints have material as nickel-plate copper or coper, stainless steel screw, surface as zinc plating or nickel-plate treatment etc, it can endure high temperature as 425 C degree, Voltage 250V-450V, Current 10A-30A . Our products are made not-standard with high quality , it can be customerized by your request .

Performance
Item	Index	Unit	Steatite ceramic	95 Al2O3	96 Al2O3
Physical Characteristics	Bulk density	g/cm3	2.7	3.6	3.6
Physical Characteristics	Water absorption	%	0	0	0
Mechanical Characteristics	Flexural strength	Mpa	145	320	340
	Hardness Vickers	Gpa	5.7	12.2	13.5
	Elastic modulus	Gpa	120	280	320
	Poisson’s ratio	-	0.21	0.22	0.23
Thermal Characteristics	Linear expansion coefficient	20-5000C 10-6/0C	7.9	7.1	7.2
	Thermal conductivity	w/(m.k)	2.5	16	24
	Specific Heat	10-3J/(kgK)	0.75	0.78	0.78
Electrical Characteristics	Dielectric constant(1MHZ)	-	6.2	9	9.4
	Dielectric loss angle	*10-4	18	15	5
	Dielectric strength	*106V/m	18	12	15

Advantages of High Quality Electric Ceramic Connector

Anti aging, fire protection and heat-resistance , good insulation property, strong mechnical property, good steady property. It can be used in different enviroment, also can meet mechnical device connection of severe working temperature etc.

Application of Industrial Electric Ceramic Connector

Electric Ceramic Connector is widely used in high temperature enviroment, kinds of connection terminal space of severe demand.
